Summary
1.4 channel PWM constant voltage / constant current DMX decoder with digital display.
2.DMX decode mode / Stand-alone RGB/RGBW mode / Stand-alone 4 channel dimmer mode.
3.DMX address display, set DMX address freely.
4.Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard)
standard protocols.
5.RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example,
you can set DMX decoder address by DMX master console.
6.Under stand-alone RGB/RGBW controller mode, have 30 mode, include static color, jump, flash, gradual change style, adjustable speed and brightness.
7.Under stand-alone 4 channel dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.
8.1/2/4 DMX channel decode optional.
9.High or low PWM frequency optional.
10.Log or linear dimming curve optional.
11.Three kinds of DMX signal input method, have XLR3 and RJ45 port.
Package Include:

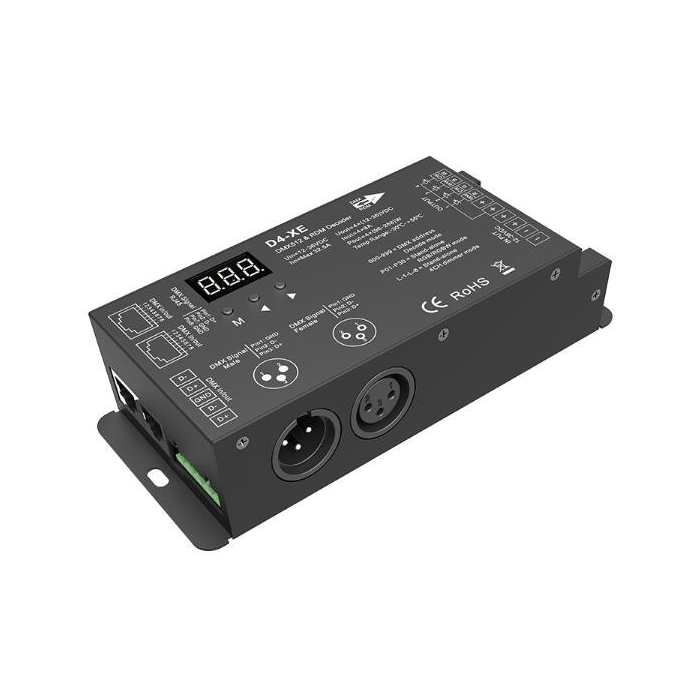

1 Piece of Skydance D4-XE 4CH*8A DC 12-36V CV DMX Decoder
1 Piece of User's Manual
CE and RoHS approved
