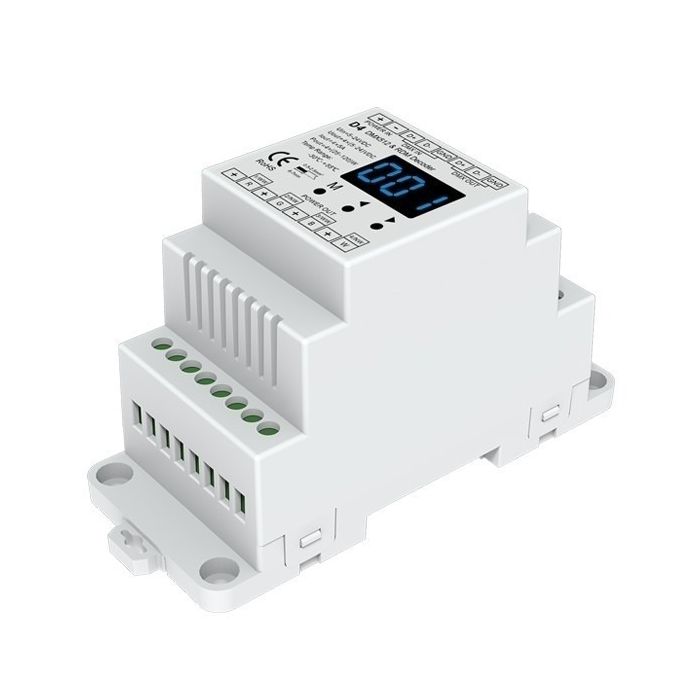

Skydance D4 DMX LED Decoder 4CH x 5A CV DC 5-24V

Be the first to review this product

A$21.48

In stock

SKU

Skydance D4 DMX LED Decoder 4CH x 5A CV

Buy 50 for A$20.48 each and save 5%

Skydance D4 DMX LED Decoder 4CH x 5A CV DC 5-24V is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@agodx.com

Agodx.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

Technical parameters

1.Input voltage: 5-36VDC

2.Input signal: DMX512

3.Output type: PWM constant voltage

4.Output current: 4CH,5A/CH

5.Output power: 100-720W

6.Decode number: 1/2/4 DMX Channel

7.Dimming range: 0-100%

8.Working temperature: -30℃~55℃

9.Dimension: L115×W48×H67mm

10.Weight: 110g

Summary

1.Din rail mounted DMX512 constant voltage decoder, four channel output, 4A per channel.

2.With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.

3.Compatial with our DMX masters such as T12,T13,T15,T16,T17, and any other high quality DMX master.

4.It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness.

5.It can also work as stand-alone 4 channel dimming controller, each channel adjust brightness independently,and save up to 8 groups brightness.

6.Work with power repeater to expand output unlimitedly.

Package Include:

1 Piece of Skydance D4 4CH*5A CV DMX LED Decoder DC 5-24V

1 Piece of User's Manual

Skydance_Controller_D4_1

Skydance_Controller_D4_2

Skydance_Controller_D4_3

Skydance_Controller_D4_4

Skydance_Controller_D4_5

Skydance_Controller_D4_6

Skydance_Controller_D4_7

CE and RoHS approved
